Wanderful Family Van - Ram Promaster
What is our favorite part of this build?
My favorite thing about this build is how it facilitates quality family time - from bunk beds to a dining lounge for 4 to a full kitchen - it’s the perfect conversion van for creating family memories.
-Patrick - Owner & Master Builder
Quick Facts
Camper Van Seats
Camper Van Sleeps
Heating
Cooling
Conversion Van Toilet
Outdoor Shower
Indoor Shower
Off Grid Electrical
Custom Finishes & Storage
Custom Camper Kitchen
Trees Planted
4
4
Yes
Fan
Yes
Yes
Yes
Yes
Yes
Full
100
Off the Grid Electrical System:

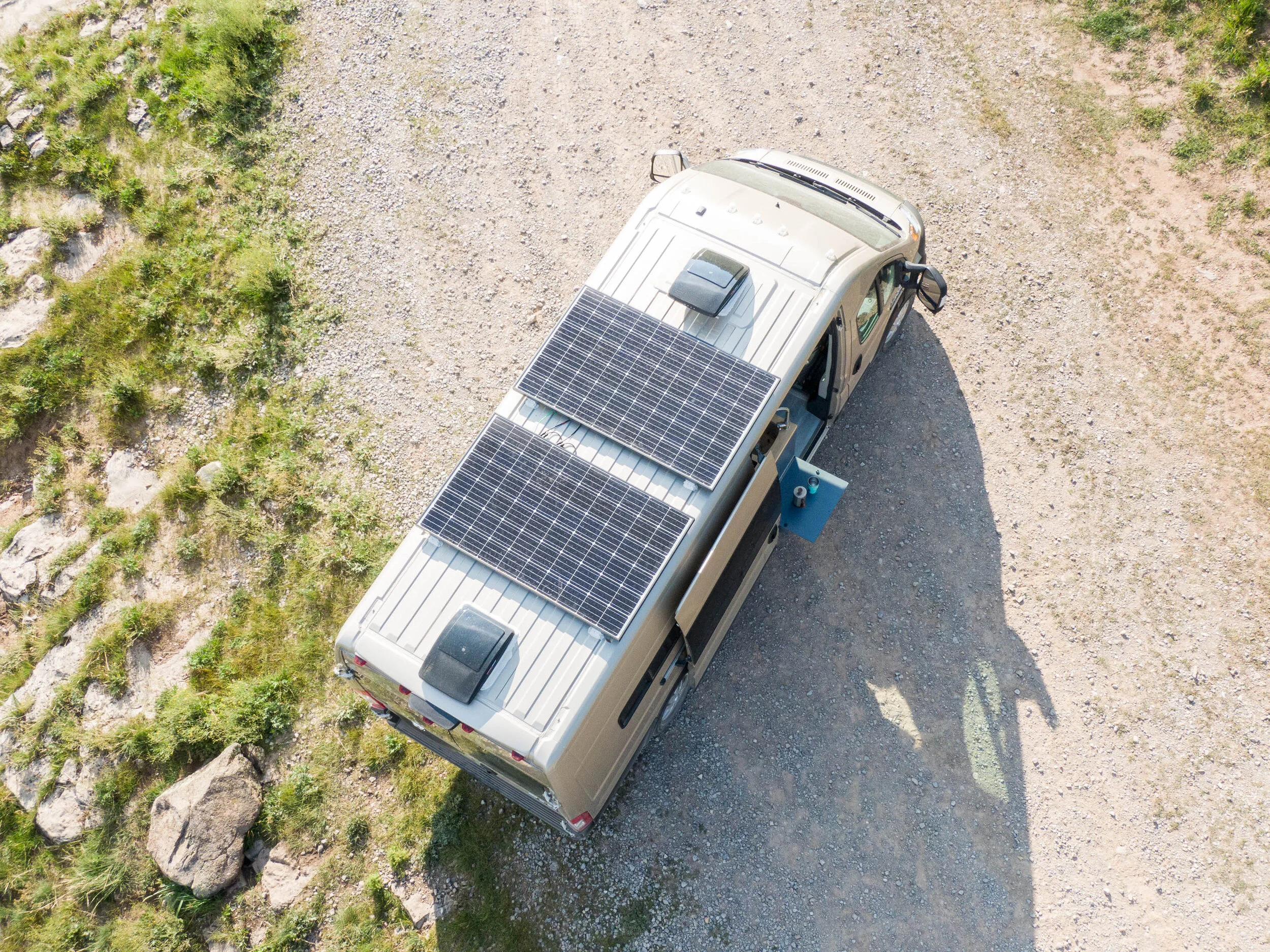

· 550W Solar Panel
· 3000 W Renogy Inverter/Charger
· Shore Power
· 40A Charge Controller
· 300 AH Lithium ReLion Battery
· Battery Isolator for Charging while driving
· Victron Battery Monitor for easy use and management
· 13 LED Lights with 4 Lighting Zones
· AC & DC Outlets with Additional USB Plugs
Plumbing/HVAC:
· Two - 10 Speed, Maxxair Fans with Intake and Exhaust
· Venting Driver side Window
· Venting Passenger Sliding Door Window
· Two venting bunk windows in the rear
· Espar Airtronic heater that runs off of the vans gas tank
· Bosch 4 gallon hot water heater
· 30 Gallon Fresh Water Tank
· 10 Gallon Gray Water Reservoir

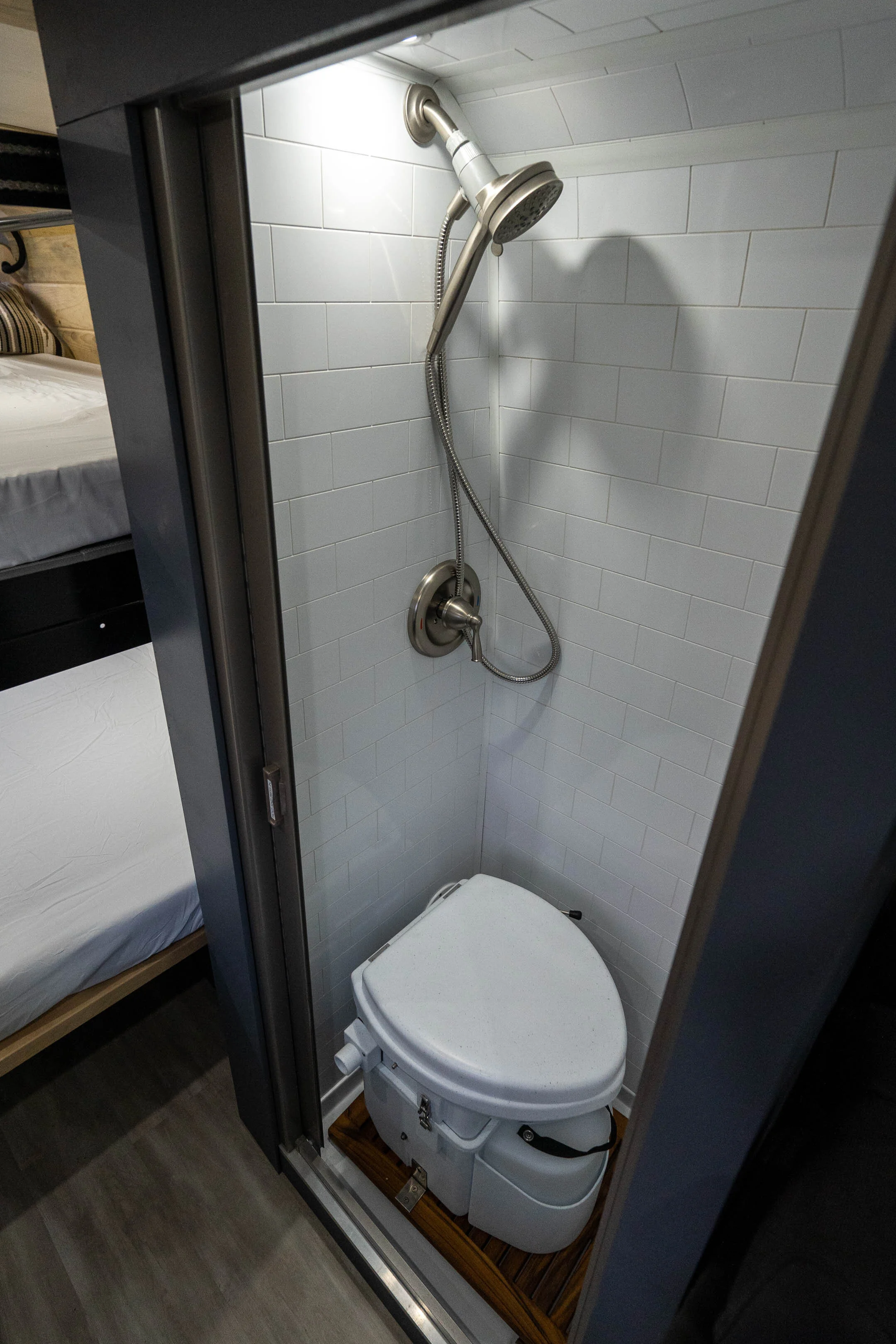

· Full wetbath with an indoor shower and Nature’s Head Compositing toilet
Kitchen:
· Butcher Block Counter Top
· Stainless Steel Faucet with Pull Down Sprayer
· Stainless Steel Sink
· Single Burner Induction Stove Top
· Silver Isotherm 85 Fridge with Freezer Compartment
· Custom Built Cabinets with lots of Storage and 5 drawers
Carpentry:
· Upper Cabinets Above the passenger seats with Struts to Hold Open
· Marine Stainless Steal Push Button Latches
· Lagun Table

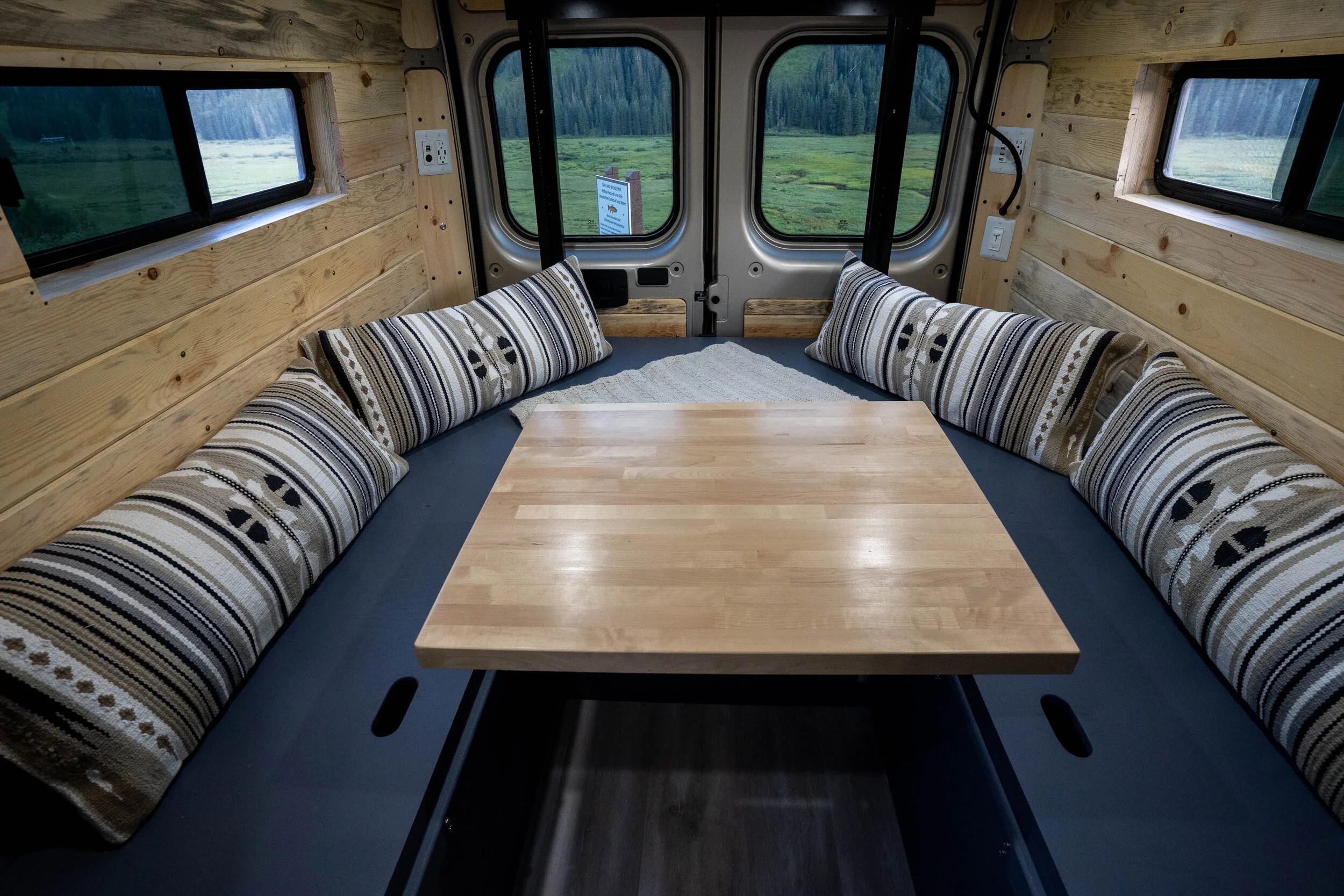

· Dinette to bed conversion area
· Bunk bed with an electric Happi Jack bed lift system
Other:
· Driver & Passenger Swivel Seat
· Custom made cushions
· Beetle Kill Pine Tongue and Groove Walls
· Eco-friendly, non-toxic paints and stains
· 100 Trees planted
